Spectral Dynamics is a leading worldwide supplier of systems and software for vibration testing, structural dynamics and acoustic analysis. Spectral Dynamics' products are used for design verification, product testing and process improvement by manufacturers of all types of electronic and mechanical products. A privately held corporation with more than 100 employees.
We Shake It – Modal to Monster shaker sizes including air-cooled to 17,600lbf and Monster water-cooled.
Control It – Single Exciter to Multi Exciter, up to 16 outputs and 10kHz bandwidth!
Measure It – 4 inputs to 1000s of inputs up to 2MHz bandwidth all guaranteed alias free!
Analyze It – Phase, Acoustics, Modal, Rotating Machinery and Explosive Shock!
Come test with Us!
Whether it is 2 to 8 electro dynamic shakers testing to 2000Hz or 2 to 8 electro hydraulic shakers testing to 125Hz, Spectral Dynamics Jaguar is the right controller for you – controlling for 2 to 6 or even 8 degrees of freedom using true science and engineering.See why more companies are testing satellites and other large structures with multiple shakers and Spectral Dynamics MIMO JAGUAR Controllers.
Visit spectraldynamics.com for a list of published MIMO papers to advance the stste-of-the-art multi-shaker testing.
Don’t trust your important MIMO tests to a pretender!
6 DOF Systems with Hydraulic Exciters. 5 to 125Hz – an easier way to control or suppress overturning moments and rotational motion.
Entire Vehicle Testing using MIMO Road Replication.
Spectral Dynamics wide Frequency range X,Y,Z tri-axial shaker system with amplitude, phase and coherence control.
The Air Cooled Series Vibration test systems are a versatile wide frequency range electrodynamic vibration test system which feature the following:

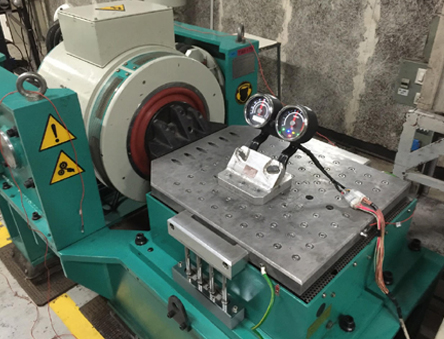

The Water Cooled Shakers are versatile wide frequency band electrodynamic vibration test system which feature the following:
Spectral Dynamics now supplies State-of-the-Art complete systems to satisfy themost demanding requirements for dynamic structural testing and motion simulation.
❖ One, two, three or six Degrees of Freedom
❖ Several available dimensions. Standard payloads up to 30 tonnes. Standard frequency ranges up to 100Hz.
❖ Used to perform validation, durability, squeak and rattle and NVH testing
❖ Hydraulic or electromechanical actuation technology
❖ Versatile motion platform for applications such as driving and flight simulation, turret testing or teaching of subjects like Structural Dynamics or Robotics.
❖ Several available dimensions. Payloads up to 5 tonnes. Frequency range up to 20 Hz.
❖ Hydrostatic and hydrodynamic bearings (dynamic testing) and polymeric bearings (static testing)
❖ High performance MOOG servovalves
❖ Adjustable backlash swivels
